Shock Tools

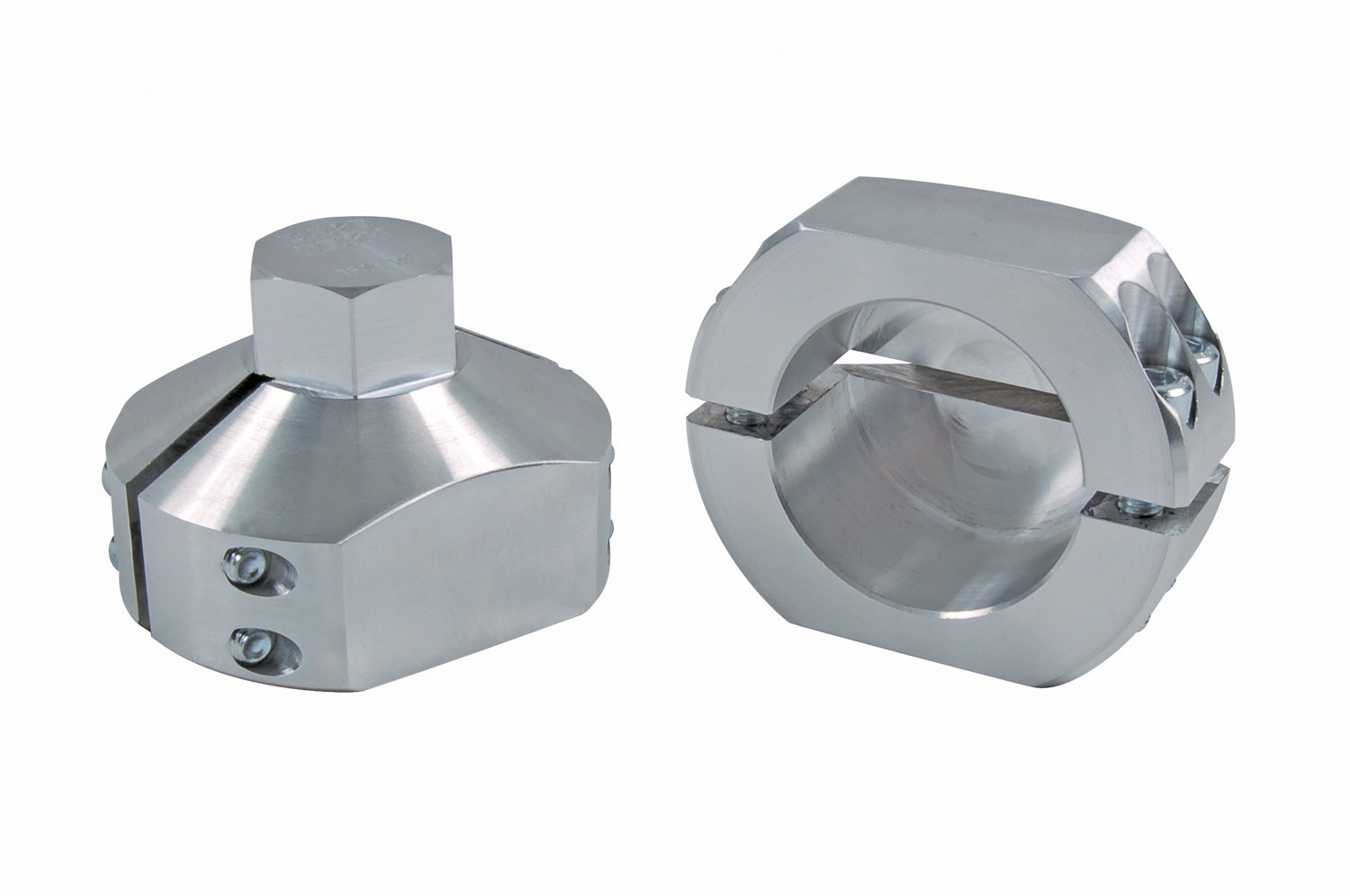

Shock Body / Reservoir Holding Tools 58 & 65mm

Description

The Shock Body Holding Tool is ideal for removing and installing WP and Race Tech reservoir bodies. Has four pinch bolts and can be used in a hydraulic press for additional holding power. Machined from billet aluminum.

Note: You can make custom bushings to clamp smaller tubes including Fork Tubes, Shock Bodies, etc. Custom bushings can be made by your local machinist and are not available through Race Tech.

TFSH 58 (58mm) –

TFSH 65 (65mm) –

Bushing Drivers

Description

Used to remove and replace shock shaft bushings into most seal heads.

12.5, 14, 16, and 18mm

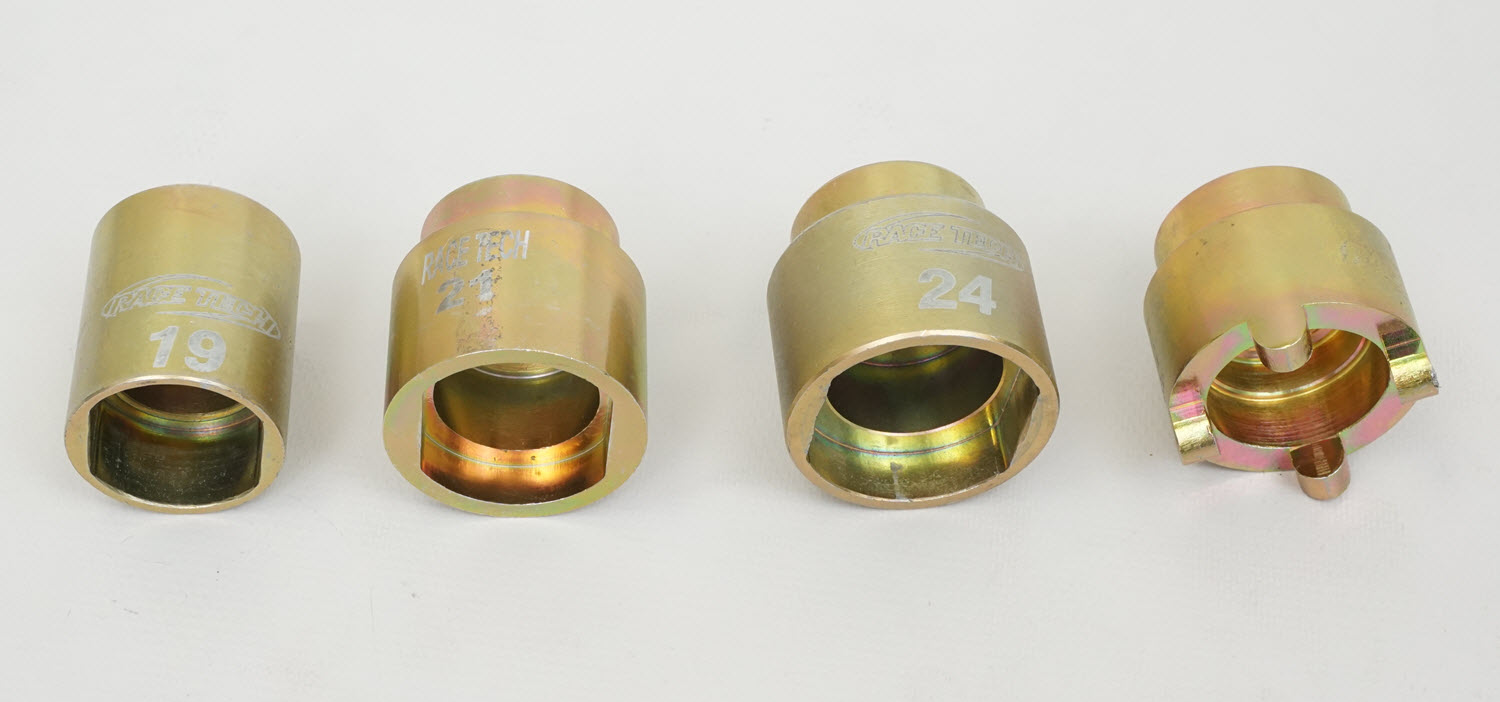

Shock Compression Adjuster Sockets

Description

Used to service shock compression adjusters.

Item codeFits
TSCA 01YZ Special
TSCA 19
19mm, 2 flats
TSCA 2121mm, 2 flats
TSCA 24
24mm, 2 flats
TSCA 34
34mm, 12 point WP

Note: On some shocks there are punch marks at the threads. These must be drilled 1 mm deep prior to compression adjuster removal.


TSCA 34 WP 12 point

Description

Removes shock retaining clips without digging into the shock bodies. Made of hardened tool steel. If you work on shocks you'll really like this one!

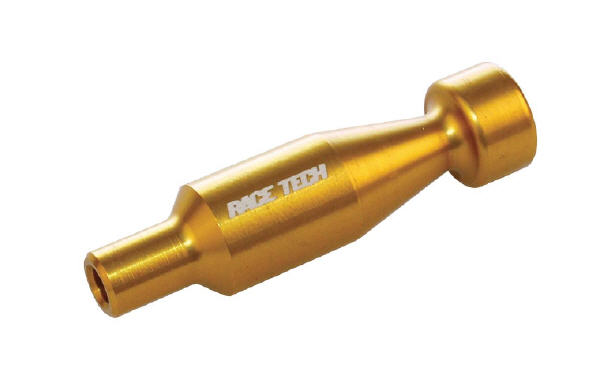

Reservoir Cap Tool

Description

This tool threads onto the Schrader Valve located on the reservoir cap for easy removal.

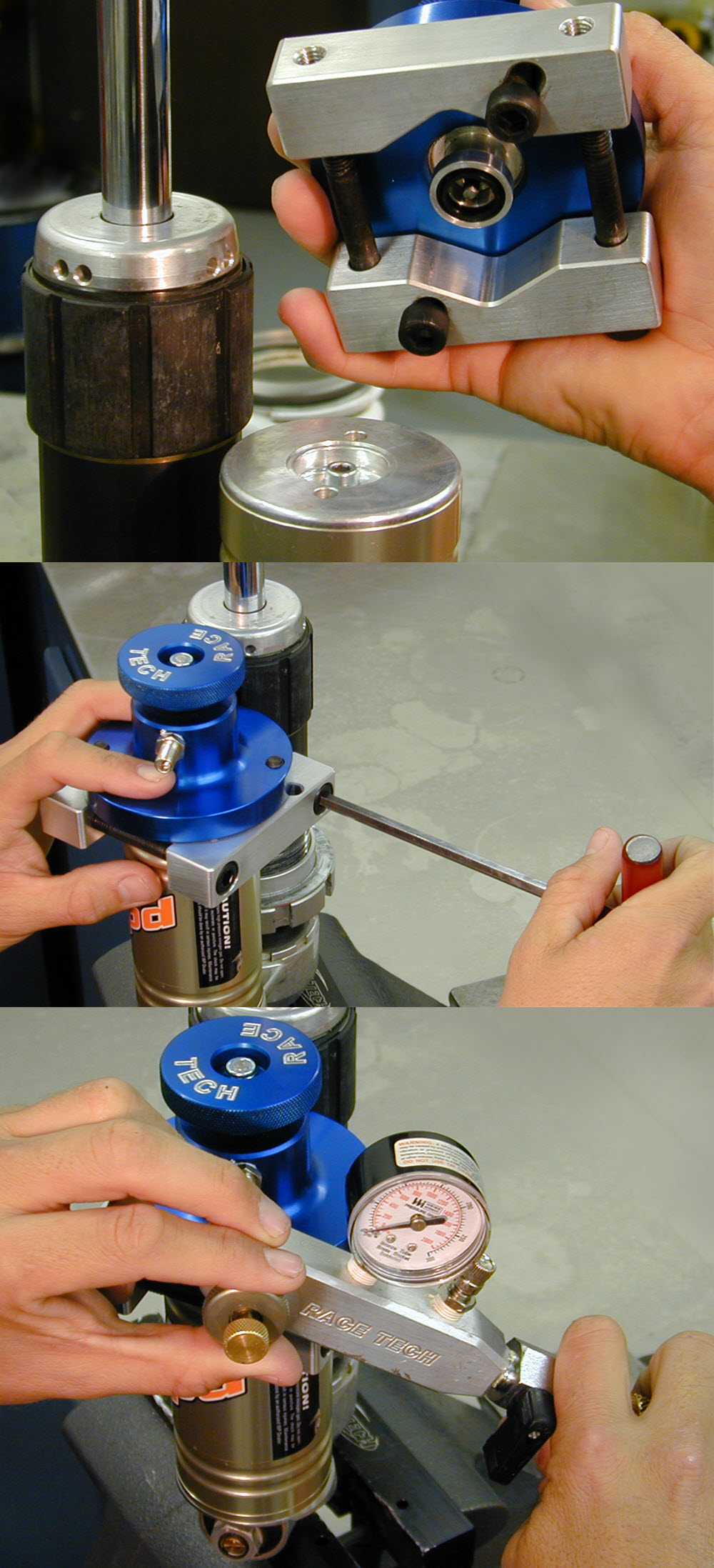

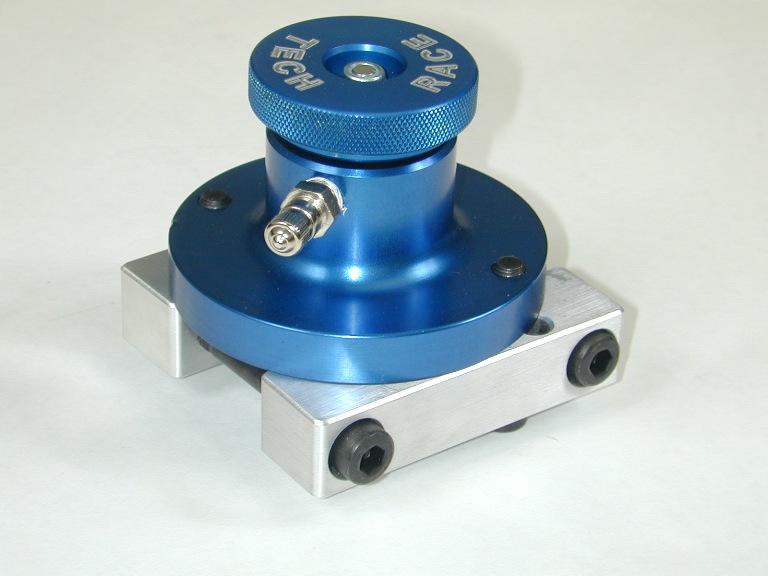

WP Nitrogen Charging Tool

Description

The Race Tech WP Nitrogen Charging Tool works on all WP shocks with a reservoir 65mm OD or smaller.

Quick and easy to use and a "must have" if you work on a higher volume of WP shocks. Best if used with TSNG 02 Nitrogen Gauge.

This tool can be replaced with the new TSNC W74P charging tool if you also purchase the TSNC W74PBS Adapter Bushing Set.

TSNC 02 -

If you are only working on a few shocks consider a SPNV 0512 Nitrogen Bolt with a TSNN 01 Nitrogen Needle.

SPNV 0512

Additional Images

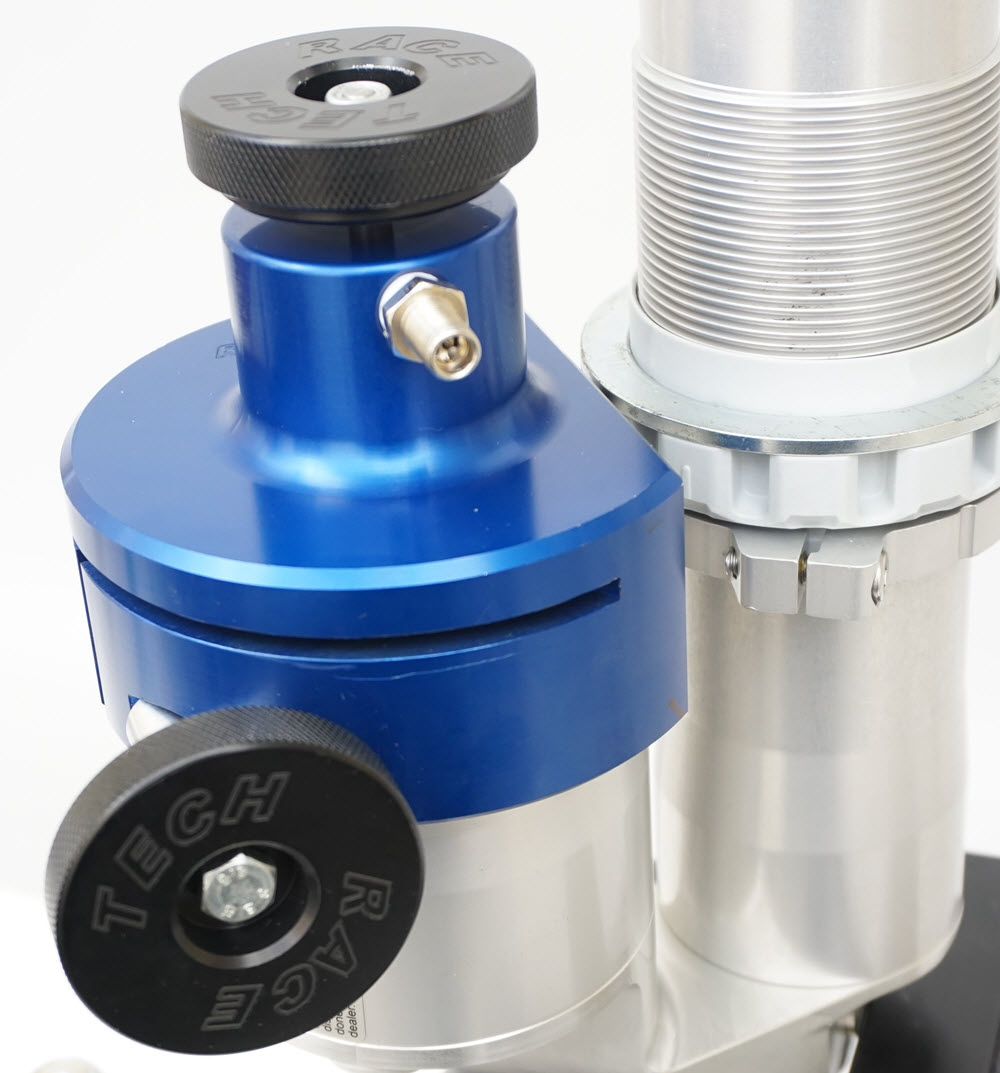

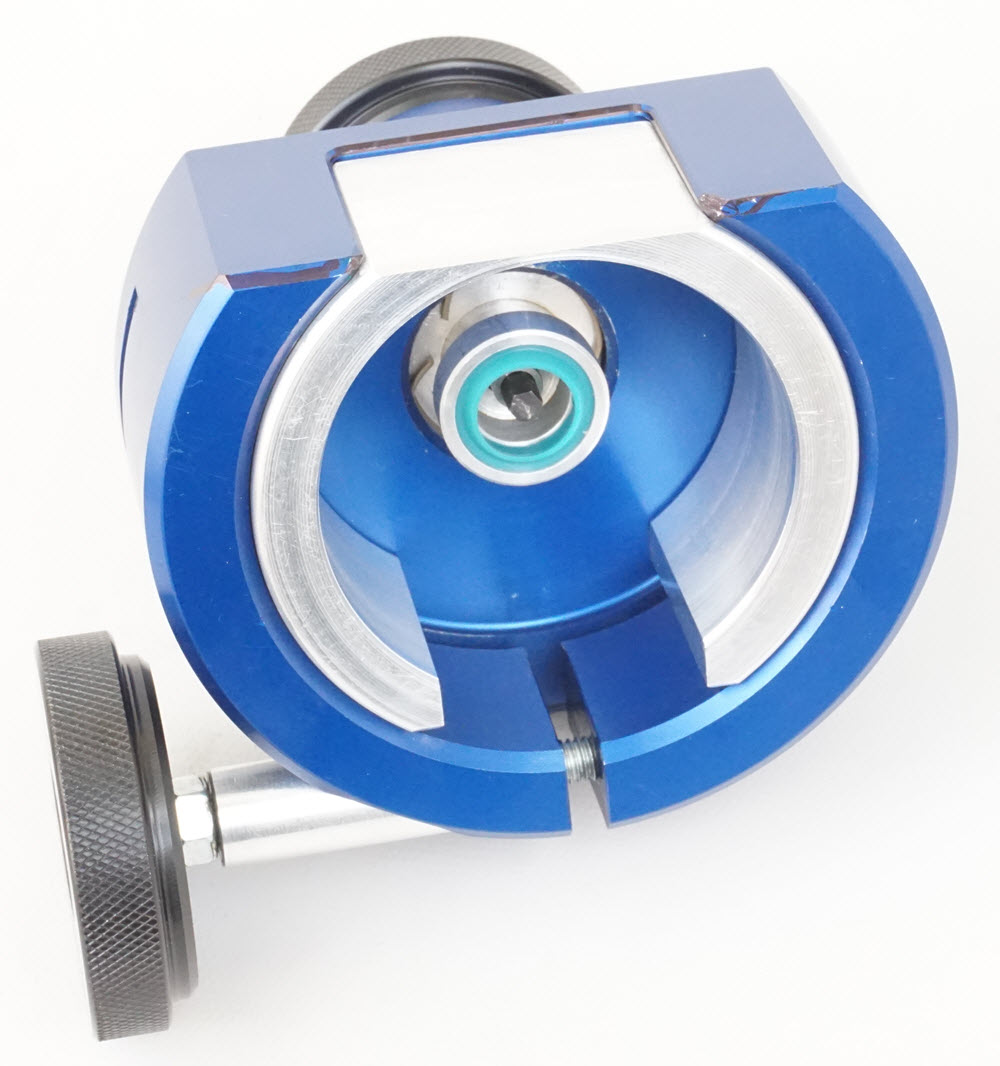

WP Nitrogen Charging Tool for 74mm Reservoir

Description

NEW! 11-2023

The NEW Race Tech WP Nitrogen Charging Tool works on 2022.5 and later WP shocks with a 74mm OD reservoir.

It can be used on 48 thru 65mm reservoirs with the use of Adapter Bushings. These can be ordered individually or you can save a bit and purchase them as a set (TSNC W74PBS). Used with the Adapter Bushings this tool will replace the TSNC 02.

This tool is quick and easy to use and a "must have" if you work on a higher volume of WP shocks. It has clearance for the preload adjusting collar so there is no need to get it out of the way.

Pressure is best set with TSNG 02 Nitrogen Gauge.

TSNC W74P -

If you are only working on a few shocks consider a SPNV 0512 Nitrogen Bolt with a TSNN 01 Nitrogen Needle.

SPNV 0512

Additional Images

TSNC W74PBS Nitrogen Charging Tool Adapter Set

Description

NEW! 11-2023

The new TSNC W74P WP Nitrogen Charging Tool bolts directly onto 74mm OD reservoirs. It can be used on 48 thru 65mm reservoirs with the use of Adapter Bushings. These can be ordered individually or you can save a bit and purchase them as a set.

TSNC W74PBS -

Item codeFits
TSNC W74PBSBushing Set 48,52,58,65
TPNC W74PB4848mm
TPNC W74PB5252mm
TPNC W74PB5858mm
TPNC W74PB6565mm

Additional Images

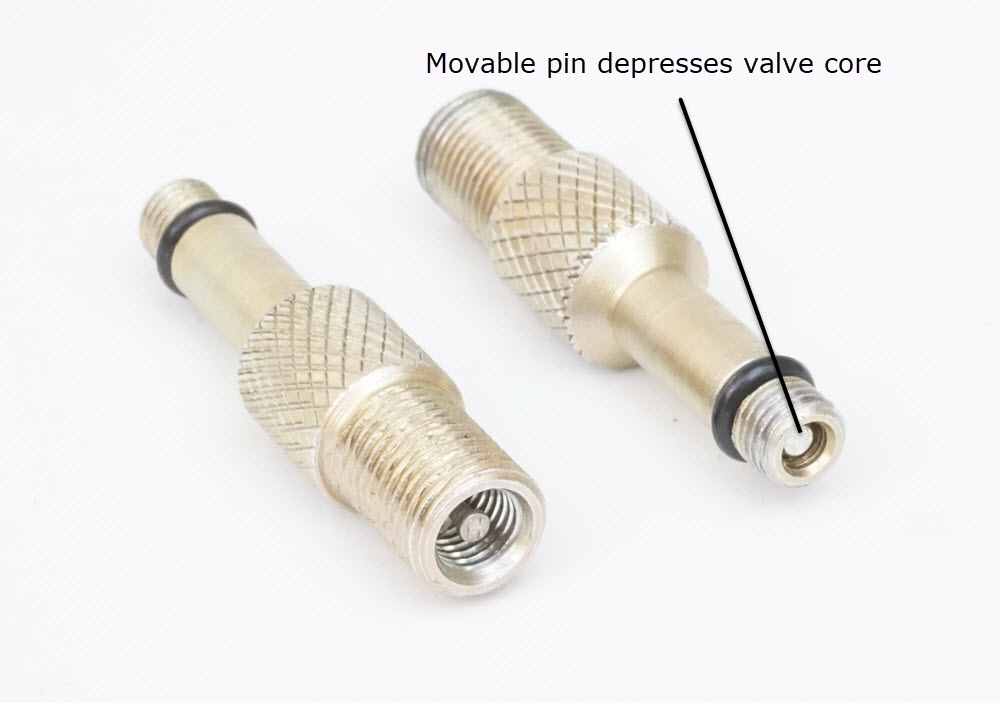

Nitrogen Charging Tool - Zero Loss RockShox MTB G3-S Internal Schrader

Description

NEW DESIGN! 11-2023

For charging RockShox MTB Shocks. The movable pin depresses the valve core when used with TSNG 02 Nitrogen Gauge for Zero Pressure Loss. No more guessing.

Also fits G3-S Shocks with Internal Schrader Charging Valves.

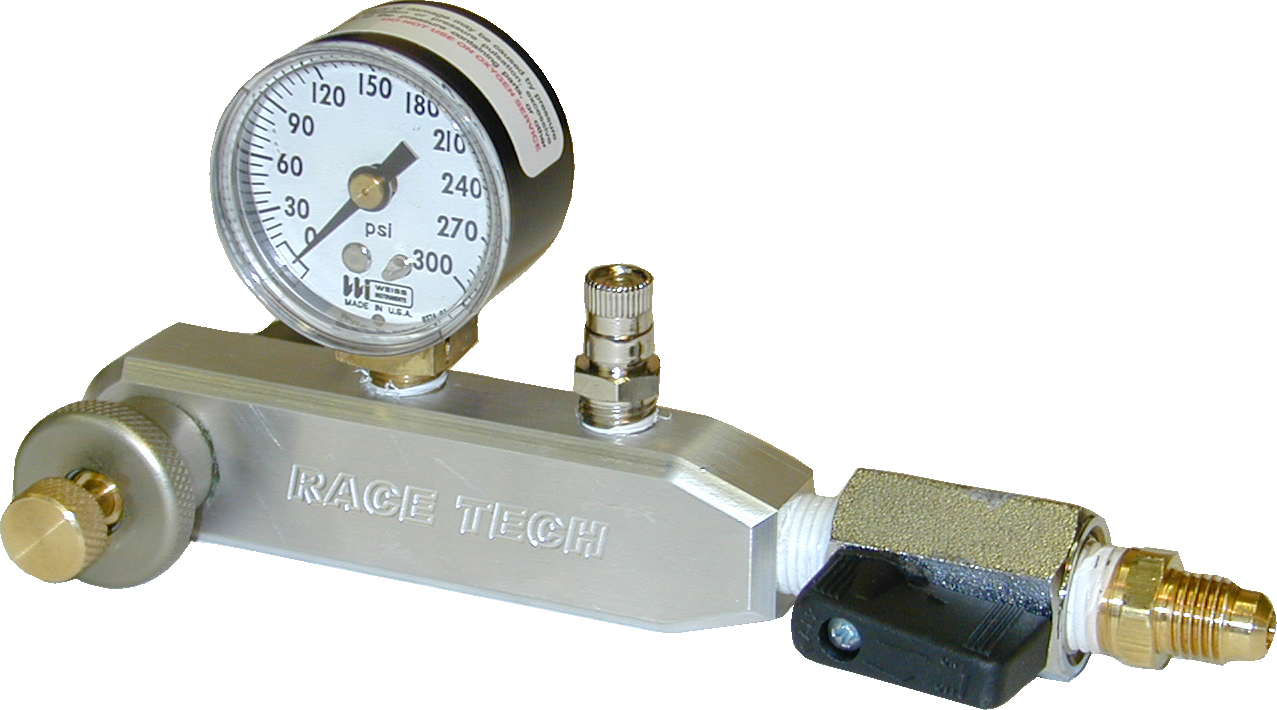

Nitrogen Gauge - Zero Loss

Description

This Nitrogen Gauge does not require a wrench and easily reaches recessed valve stems without an extension.

The Valve Core is depressed separately so there is no pressure loss.

Comes with a 1/4" flare nut quick coupling to work with the Quick Connect Nitrogen Hose (TSNH 48).

0-300 psi gauge

Quick Connect Nitrogen Hose

Description

The Quick Connect Nitrogen Hose has special 800 psi "finger tight" 1/4" flare nut quick couplings. Does not require a wrench.

This hose works perfectly with our Nitrogen Regulator and Gauge.

48" long

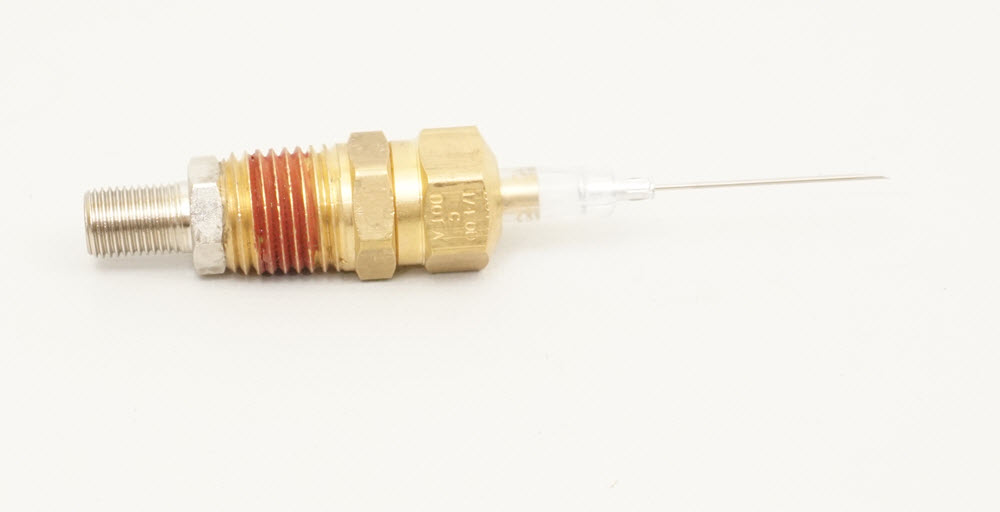

Nitrogen Needle

Description

Designed for gas charged shocks with self-sealing type rubber valves.

Used with Nitrogen Gauge

TSNN 01 Nitrogen Charging Needle

TPNN 01 Replacement Needle

SPNV 0512

2009-15 RM-Z Suzuki Shock Disassembly Tool

Description

Many 50mm Suzuki shocks from 2009-15 have an "interesting" piston ring design that seals OK but has massive drag (really bad-strongly recommend a Gold Valve).

This seal gets stuck in the circlip groove during disassembly, often destroying it. This Piston Ring Tool fits into, and fills, the circlip groove allowing the seal to easily slide past.

It doesn't remove the massive friction (uhh, have I mentioned Gold Valves?) but it does allow removal of the shaft assembly!

WP PDS Metering Pin Tool

Description

The WP PDS Shock Needle Tool removes the Compression Needle from the shock body on early KTM WP PDS shocks. This is the most economical way to go (see TSPS T Series T-handle version) but only available for the early model.

Required to install a SWCN 10 Telescopic Needle.

For later model PDS shocks see TSPS T Series Pin Spanners.

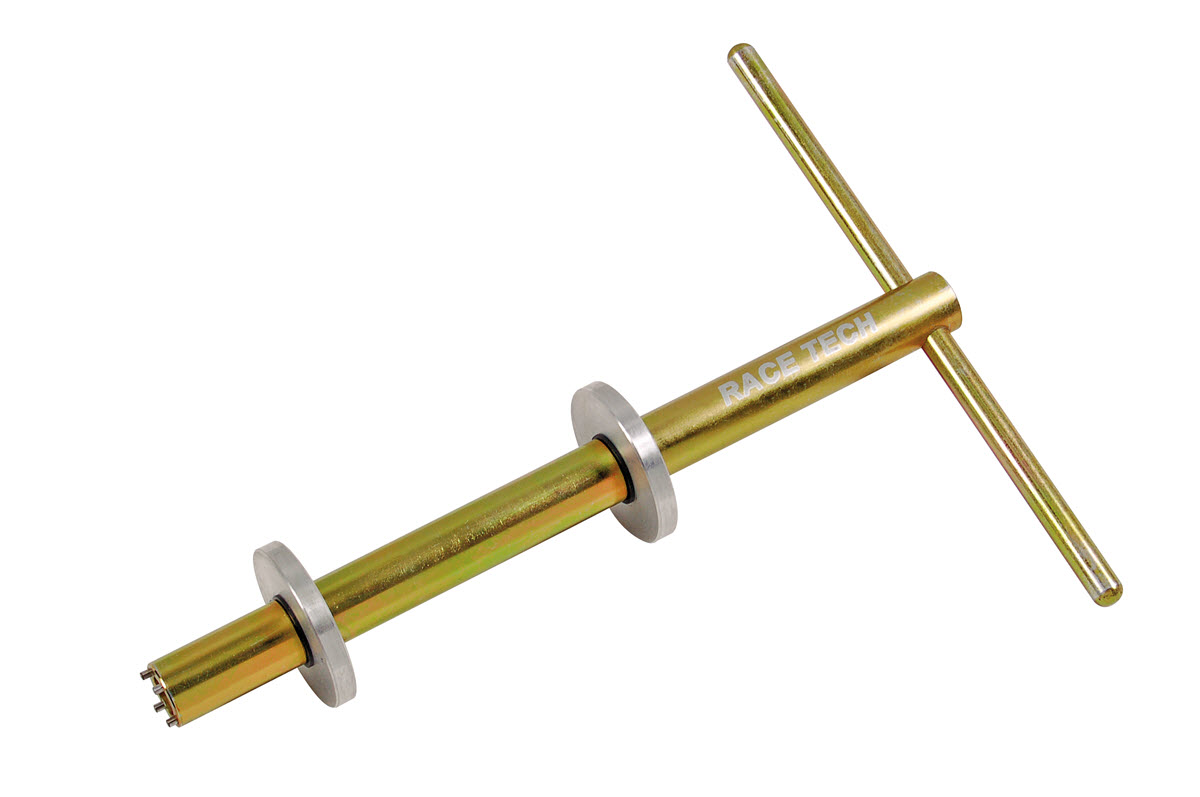

WP PDS Metering Pin Spanners

Description

This is the PRO version of the needle removal tool. If you are servicing a lot of WP PDS shocks these are the one to have. It is driven with a T-handle, holds the Needle, and is self-centering in the body.

Item Codepin circle x
pin diam
TSPS T152415.0 x 2.4mm
TSPS T1653016.5 x 2.4mm
TSPS T2020.0 x 2.4mm

Note: It is ok for the pin to be smaller than the hole.

Shock Spring Preload Collar Adjusting Tool

Description

This Preload Collar Adjusting Tool is designed to fit multiple diameter collars. It features a back cut on the hook to reduce the possibility of slippage. It also has a 24mm open end wrench for adjusting ride height.
Check out TSPA 01 for a Preload Adjusting Tool you can be really agressive with.

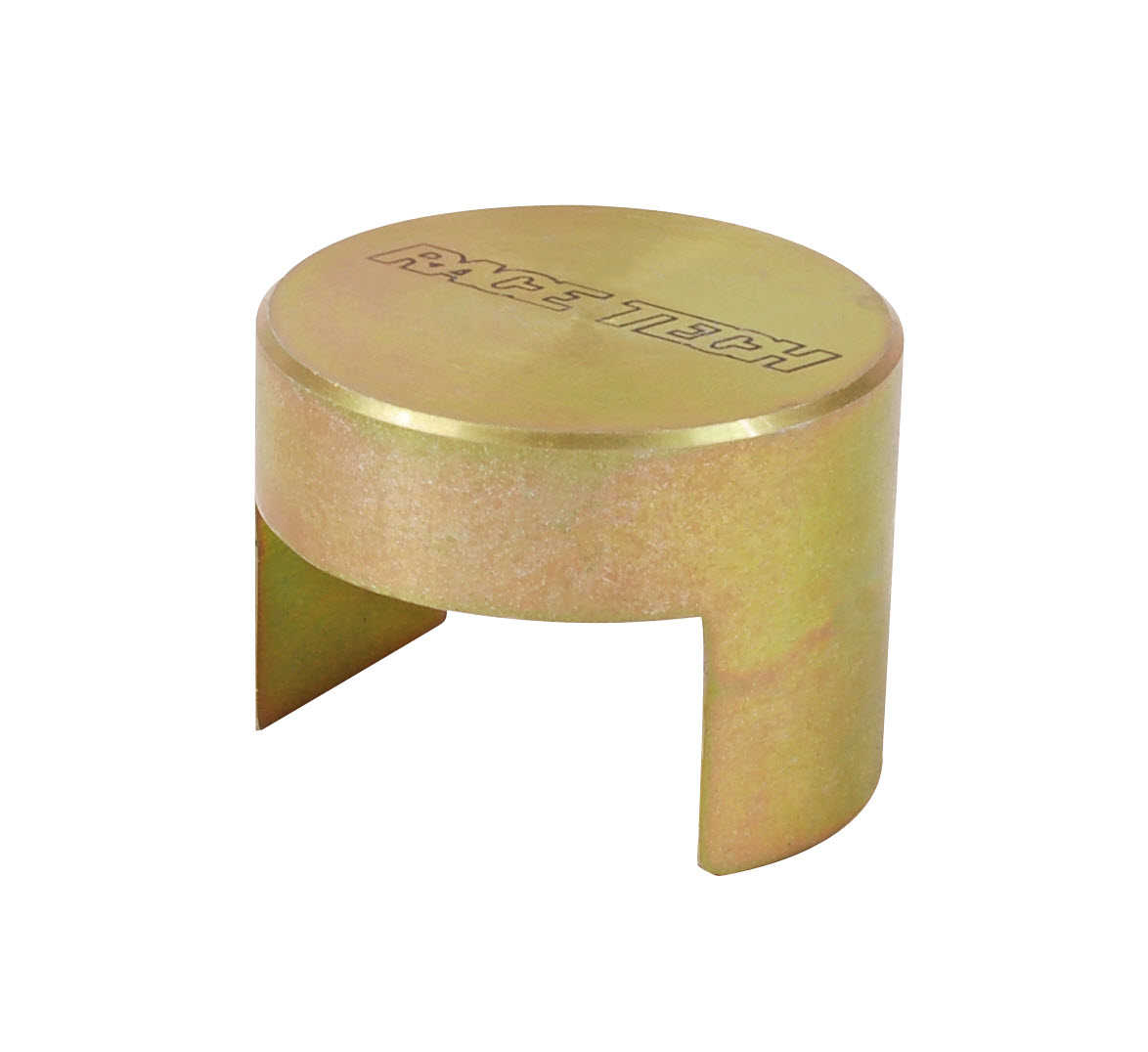

KYB YZ Shock Reservoir Cap Tool

Description

This tool is used to tap the bladder cap down to remove the snap ring on late model YZs eliminating the possibility of damage to the Schrader Valve.

Shock Reservoir Tool

Description

NEW! 11-2023

This tool is designed to remove the reservoir from WP shocks with 74mm OD reservoir bodies. These have a 45mm hex drive.

Reservoir removal is commonly done for SWBL 6002 Bladder Conversions and/or complete shock service.

Shock Reservoir Piston Setting Tool

Description

NEW!
Can be used on most Piston Style Shock Reservoirs.

It features two o-rings to easily mark the full bottom-out point as well as the piston set point.

M3x.5mm thread. Use of the thread is not required.

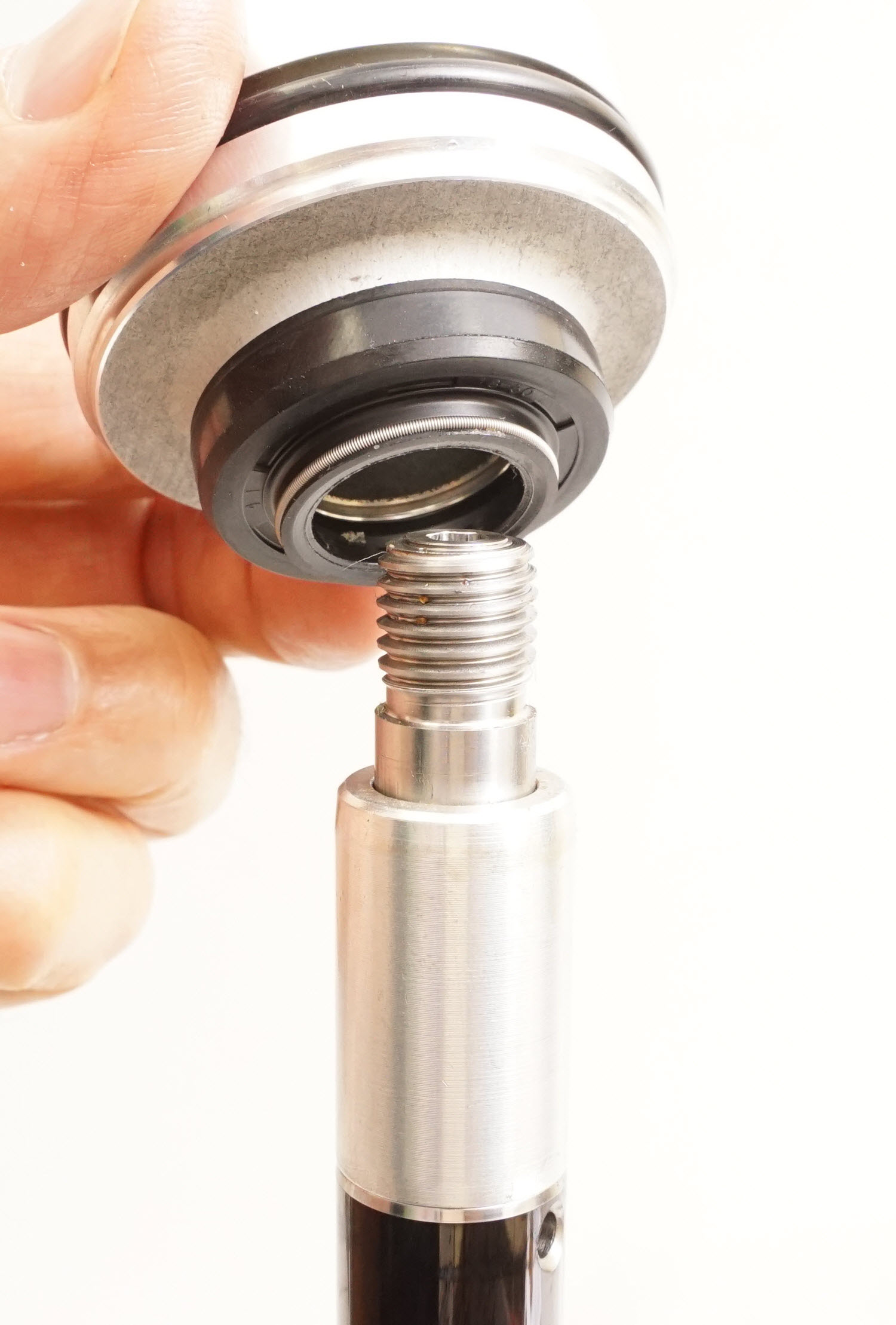

Shock Seal Bullet Tools

Description

Shock Seal Bullet Tools makes installing seal heads onto shock shafts quick and safe. They eliminate the possibility of seal damage. A must for serious tuners.

Item codeFits
TSSB 12512.5x10mm
TSSB 1414x12mm
TSSB 1616x12mm
TSSB 1818x16mm
TSSB 181218x12mm

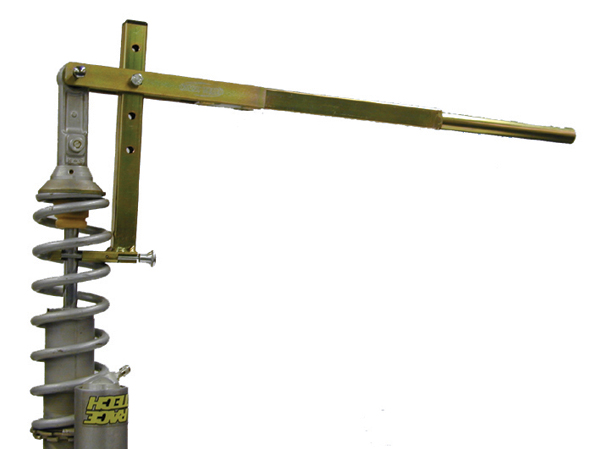

Shock Spring Compressor Lever Type

Description

Provides quick removal and installation of most shock springs with spring rates up to 8 kg/mm. Features a Shaft Locking Device for safety.

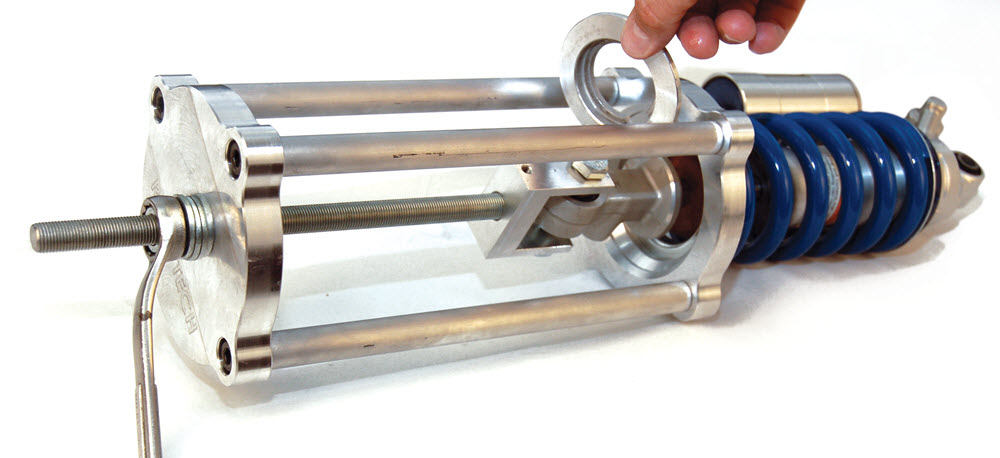

Shock Spring Compressor Portable

Description

This Shock Spring Compressor is strong, light-weight and easy to use. It comes with 4 adapters (60, 66, 72, and 75mm) for different size spring collars and both an eyelet and clevis adapter.
Invented by Jason Eldredge of Corporate Suspension in Utah.

This one is so cool you’ll want to remove shock springs just for the fun of it. ►More Info...

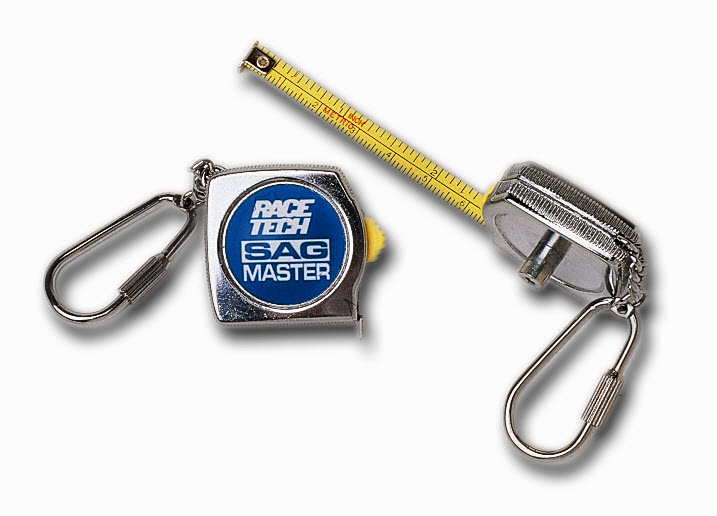

Sag Master

Description

Voted as Dirt Bike Magazine's 25 Best Tools Ever Invented, the Sag Master is a tool that makes measuring Static "Race" Sag a snap because you read it directly. No subtracting!
Also useful in monitoring linkage and seal drag. Doubles as a tape measure!

►Check out the Sag Master in action.

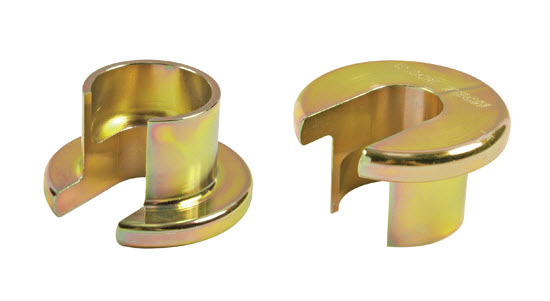

Shock Seal Head Setting Tool

Description

Allows the user to easily push shock seal heads into the bodies.

Four sizes available. Mini's, Standard 40-50mm, Street and WP PDS 50mm shocks.

Item CodeFits
TSSS 0140-50mm standard
TSSS 01S40-50mm Short (street)
TSSS 0250mm WP
TSSS 0333-36mm mini

Description

The Vacuum Master Shock Bleeding Tool makes high-tech shock filling more affordable. This machine not only saves time and increases efficiency, but it creates a "perfect bleed".

This Vacuum Bleeding Tool is the most powerful on the market. It is so powerful it actually draws air out of the suspension fluid itself!

Comes with adapters to fit most shocks.

►Learn More

Vacuum Master Single Hose Conversion

Description

This kit upgrades older "2 hose" Vacuum Masters to single hose style.
