Shop Tools

Pin Spanners

Description

If you have ever used a Pin Spanner you have probably had one slip out of the hole. This usually causes damage. RT Pin Spanners have a unique pin design with a reverse taper to keep them from popping out during use.

Each pin set is double sided. Note-the sizes listed are of the actual pin diameter. If they fit in the hole they can be used however we recommend using the largest pin size that fits in the hole to avoid breakage of the pins.

3 pins - 6 sizes total:
2.6/3.3, 3.8/4.3, and 4.8/5.3mm

Replacement Pins sold in pairs.

Item CodeDescription
TMPS 26332.6 & 3.3 Spanner
TMPS 38433.8 & 4.3 Spanner
TMPS 48534.8 & 5.3 Spanner
TMPS P2633 P2.6/3.3
Replacement Pins
TMPS P3843 P3.8/4.3
Replacement Pins
TMPS P4853 P4.8/5.3
Replacement Pins

We also offer other Pin Spanners specific to their applications including:

TSPS Series - for WP PDS Compression Needles
TFCH PS24050 - WP KTM 65 Fork Seal Heads
TFCW PS38048 - WP 4CS Fork Caps
TFCW 50H - WP 50mm Hex & 29 x 4.8 Pin Spanner Fork Caps

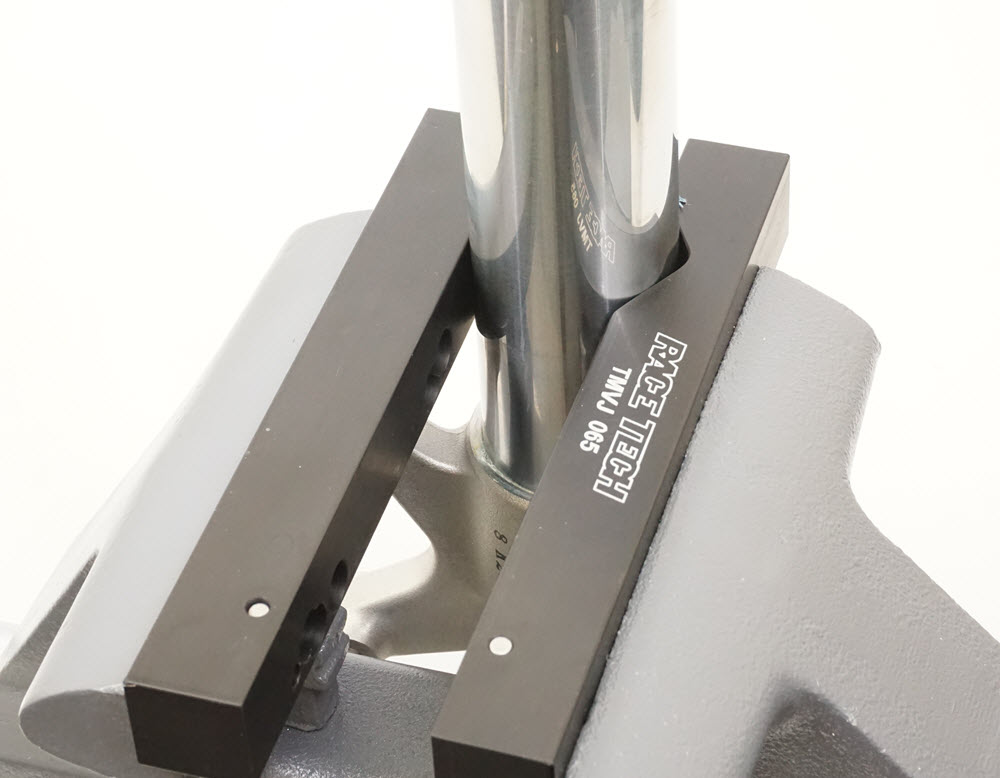

Suspension Vise Jaws (aluminum)

Description

Race Tech Suspension Vise Jaws gently, yet firmly, hold fork tubes, fork legs and other round objects in a “V” down to a diameter of 12.5mm (½”). The “V” is offset and overhangs the edge of the standard vise jaw to provide clearance for large diameter tubes.

Fits many 4 to 6.5” Craftsman, Wlton, DeWalt, and other vises with removable jaws. The jaws have a bolt spacing of 2.5, 3, and 3.5 inches. They can be drilled to fit other vises too.

Bonus!! Has pop-up pins that most TFSH Shaft Holding Tools hang on. This means the Shaft Holding Tools don't fall into the oil pan every time you use them.

Double Bonus!! With the use of the MTB Add-on Kit these are very effective for MTB forks.

Comes with M6x1.0 and 1/4"-20 mounting bolts.

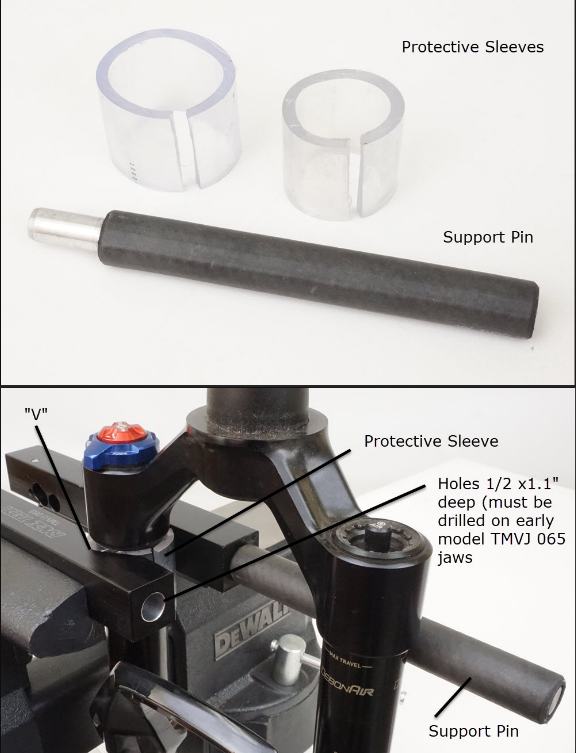

MTB Add-on Kit for TMVJ 065 Vise Jaws

Description

NEW! 11-2023

This is an add-on to the TMVJ 065 Vise Jaws for use on MTB forks. It includes a Support Pin and two Protection Sleeves.

The Support Pin fits into the holes in the end of the Vise Jaws and keeps the fork from rotating. The Protection Sleeves get wrapped around the fork tubes to keep them from getting beat up. This is simple and easy to use. With the Support Pin the forks do not require much pressure to hold.

If you already have earlier TMVJ 065 Vise Jaws and they don't have holes in the end you can modify them by drilling 1/2" holes 1.1" deep (or maybe it's time for a new set of jaws).

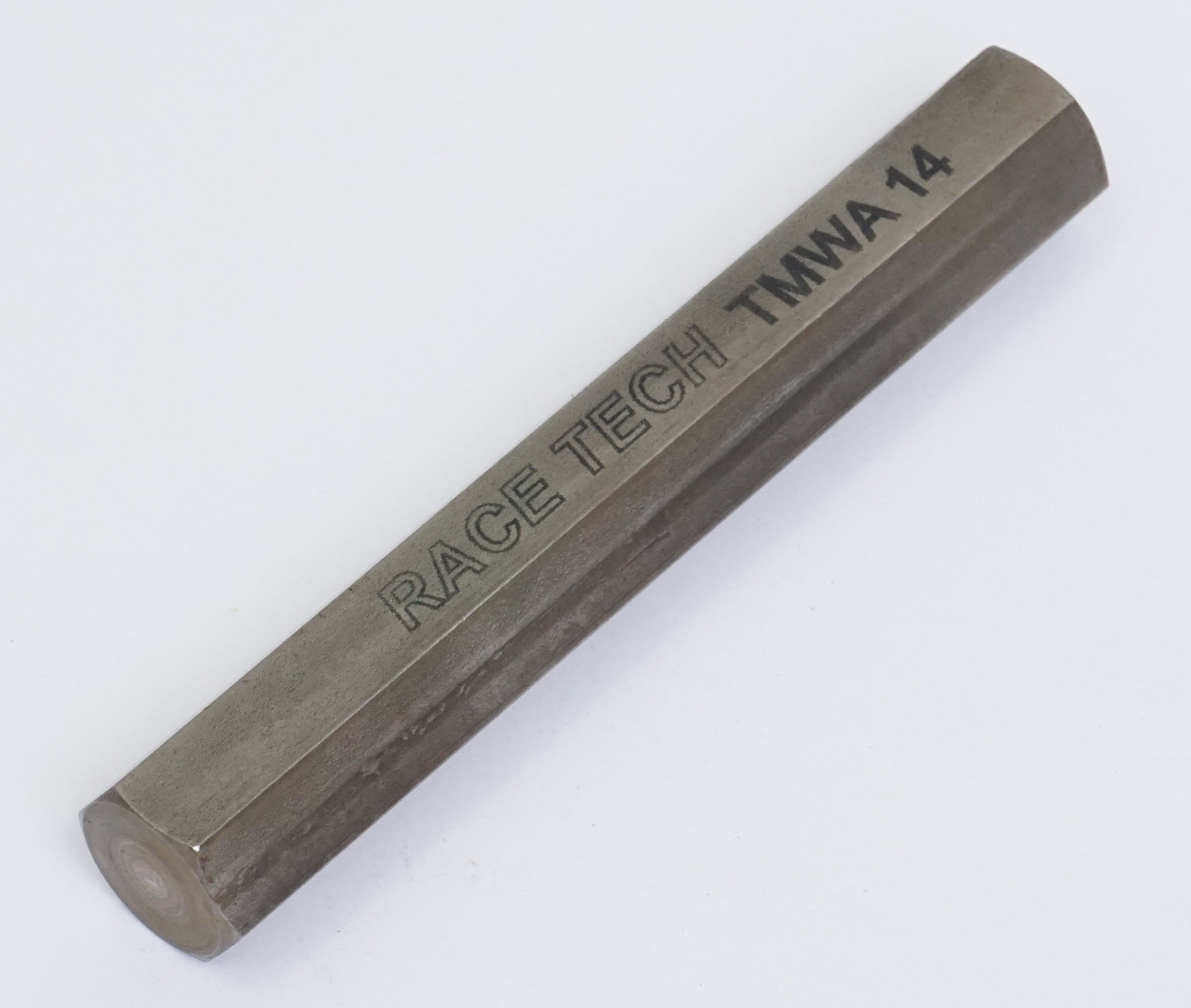

14x100 Allen Hex

Description

This is a long 14mm Allen. It is a must for working on Grom forks.

Grom forks also require a shaft holding tool for the fork tube (TFSH 31).

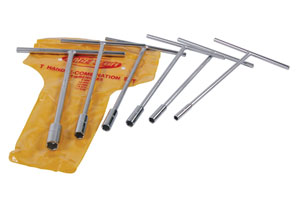

T-HANDLE TOOL SET

Description

Excellent quality, great price. Chrome Vanadium, deep 6 point sockets.

Includes 8,10,12,14 and 17mm

RACE TECH's SUSPENSION BIBLE by Paul Thede

Description

Based on Paul Thede’s wildly popular Technical Edge Suspension Seminars taught around the world, this step-by-step guide explains how suspension works! The mysterious art of suspension is demystified!
